The GameObject class is the base class for every part of games. More...

#include <gameobject.h>

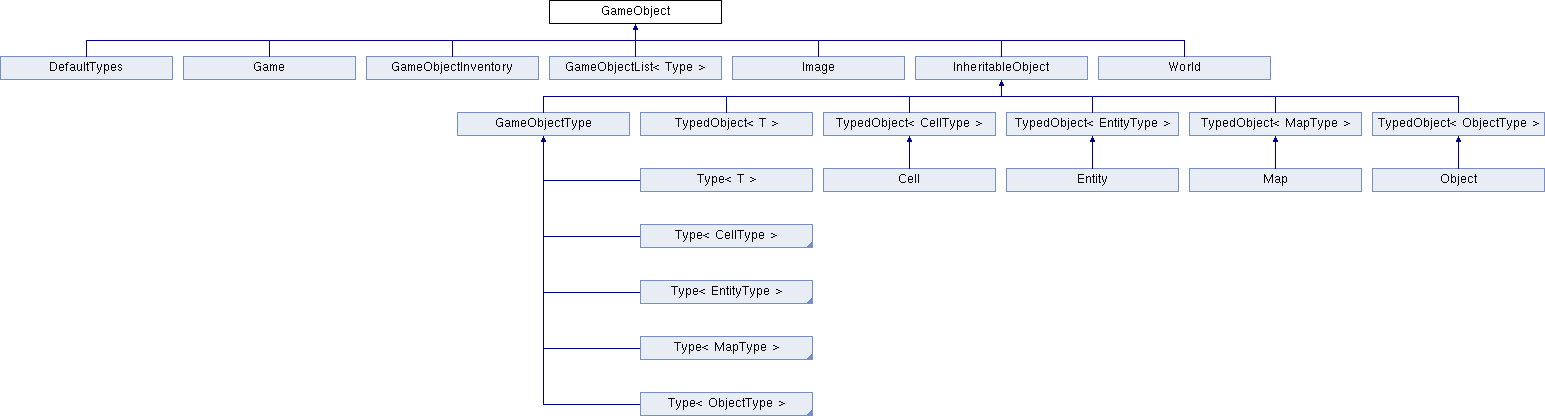

Inheritance diagram for GameObject:

Public Member Functions
virtual	~GameObject ()
GameObject int	ident () const
virtual bool	isEditable () const
const QDateTime &	lastInternalEdition () const
const QDateTime &	lastChildrenEdition () const
const QDateTime &	lastEdition () const
void	touch ()
void	addReference ()
void	removeReference ()
void	setParent (GameObject *p)
GameObject *	parent () const
virtual void	setName (const QString &n)
const QString &	name () const
virtual GameObject *	child (const int &id) const
virtual QList< GameObject * >	children () const
virtual int	getParamMin (const QString &param) const
virtual int	getParamMax (const QString &param) const
virtual void	setParamMin (const QString &param, int min)
virtual void	setParamMax (const QString &param, int max)
virtual void	setParamDomain (const QString &param, int min, int max)
virtual int	getParam (const QString &param) const
virtual void	setParam (const QString &param, int value)
virtual bool	hasParam (const QString &param) const
virtual QList< QString >	params () const
virtual void	renameParam (const QString &param, const QString &newParam)
virtual void	addParam (const QString &param, int value=0, int min=0, int max=100)
virtual void	removeParam (const QString &param)
virtual bool	getFlag (const QString &flag) const
virtual void	setFlag (const QString &flag, bool enable)
virtual bool	hasFlag (const QString &flag) const
virtual QList< QString >	flags () const
virtual void	renameFlag (const QString &flag, const QString &newFlag)
virtual void	addFlag (const QString &flag, bool enable=true)
virtual void	removeFlag (const QString &flag)
virtual bool	hasEvent (const QString &event) const
virtual Event &	getEvent (const QString &event) const
virtual Event &	addEvent (const QString &event)
virtual void	removeEvent (const QString &event)
virtual QList< QString >	events () const
virtual void	renameEvent (const QString &order, const QString &newOrder)
virtual bool	hasOrder (const QString &order) const
virtual Order &	getOrder (const QString &order) const
virtual Order &	addOrder (const QString &order)
virtual void	removeOrder (const QString &order)
virtual QList< QString >	orders () const
virtual void	renameOrder (const QString &order, const QString &newOrder)
void	addEmittedAction (Action *action)
void	removeEmittedAction (Action *action)
void	addReceivedAction (Action *action)
void	removeReceivedAction (Action *action)
Game *	getGame ()
Protected Member Functions
	GameObject (GameObject &parent)
	GameObject (Game g=nullptr, GameObject parent=nullptr)
void	init (Game g, GameObject parent)
virtual bool	isValid () const
void	copy (GameObject &obj)
virtual void	addChild (GameObject *c)
virtual void	removeChild (GameObject *c)
void	childrenTouched (const QDateTime &d)
QList< QString >	filter (QList< QString > l) const
Protected Attributes
GameObject *	aParent
QMap< int, GameObject * >	aChildren
Game *	game
int	nbRef
QMap< QString, Parameter >	aParams
QMap< QString, bool >	aFlags
QMap< QString, Event * >	aEvents
QMap< QString, Order * >	aOrders
QString	aName
QString	fileName
QDateTime	lastEdit
QDateTime	lastChildEdit
QSet< QString >	reserved
QList< Action * >	aEmittedActions
QList< Action * >	aReceivedActions

Detailed Description

The GameObject class is the base class for every part of games.

Each instance is identified by a game-wide unique identifier.

## Object edition notification mechanism

To make the edition easier, each GameObject contains two QDateTime values :

The most recent edition time, which is updated by the touch method
The most recent chidl edition time, also updated by the touch method

Note:: If the changes that are made in the object have to be detected by display/edition widgets, the touch function should be called.; To prevent the notification chain to be broken, the existing objects should always have a parent (except for the root object). This can be acheived using the init or setParent method, when the parent have not been given in the constructor. (see object.h for details)

## References count

Todo:

Constructor & Destructor Documentation

GameObject::GameObject ( GameObject & parent ) [protected]

Constructs a new GameObject with parent parent.

GameObject::GameObject	(	Game *	g = `nullptr`,
		GameObject *	parent = `nullptr`
	)		`[protected]`

Constructs a new GameObject with parent parent and the reference to the game g.

Note:: If these objects cannot be given to the constructor (case of an array of objects), the init method must be called after the creation to make the GameObject valid.

GameObject::~GameObject ( ) [virtual]

The default destructor destroy every children of the instance

Member Function Documentation

void GameObject::addChild ( GameObject * c ) [protected, virtual]

Registers a new child.

See also:: removeChild, child, children

void GameObject::addEmittedAction ( Action * action )

Register the GameObject as the emitter of the action action.

This is usefull to avoid dangling references.

See also:: removeEmittedAction, addReceivedAction

Event & GameObject::addEvent ( const QString & event ) [virtual]

Create a new event named event.

Note:: If the a event name event already exists, it will be discarded.

See also:: removeEvent, addOrder

void GameObject::addFlag	(	const QString &	flag,
		bool	enable = `true`
	)		`[virtual]`

Inserts a new falg flag.

Note:: If the requested flag already exist, it is replaced by the new one.

See also:: renameFlag, removeFlag

Order & GameObject::addOrder ( const QString & order ) [virtual]

Create a new order named order.

Note:: If the a order name order already exists, it will be discarded.

See also:: removeOrder, addEvent

void GameObject::addParam	(	const QString &	param,
		int	value = `0`,
		int	min = `0`,
		int	max = `100`
	)		`[virtual]`

Inserts a new param parameter.

Note:: If the requested parameter already exist, it is replaced by the new one.

See also:: renameParam, removeParam

void GameObject::addReceivedAction ( Action * action )

Register the GameObject as one of the receivers of the action action.

This is usefull to avoid dangling references.

See also:: removeReceivedAction, addEmittedAction

void GameObject::addReference ( )

Increases the references counter

See also:: removeReference

virtual GameObject* GameObject::child ( const int & id ) const [inline, virtual]

Returns the child with identifier i if any.

See also:: children;

virtual QList<GameObject*> GameObject::children ( ) const [inline, virtual]

Returns the list of the instance's children.

See also:: child

Reimplemented in Map.

void GameObject::childrenTouched ( const QDateTime & d ) [protected]

Registers a change in one of the child of the object.

void GameObject::copy ( GameObject & obj ) [protected]

Loads the content of obj in the current instance.

QList< QString > GameObject::events ( ) const [virtual]

Returns the list of event's names of the object.

See also:: getEvent, getOrders

Reimplemented in InheritableObject.

QList< QString > GameObject::filter ( QList< QString > l ) const [protected]

Removes the protected parameters/flags for the user visible lists.

QList< QString > GameObject::flags ( ) const [virtual]

Returns the list of the registered flags

See also:: getFlag, setFlag, params

Reimplemented in InheritableObject.

Event & GameObject::getEvent ( const QString & event ) const [virtual]

Returns the event named event.

Note:: If the requested event does not exist, an empty Event is inserted.

See also:: getEvents, getOrder

Reimplemented in InheritableObject.

bool GameObject::getFlag ( const QString & flag ) const [virtual]

Returns the value of the flag flag.

Note:: If the requested parameter does not exists, a false value is returned, and the flags map stay unchanged

See also:: flags, hasFlag, setFlag, getParam

Reimplemented in InheritableObject.

Game* GameObject::getGame ( ) [inline]

Returns the Game from which the GameObject is part.

Order & GameObject::getOrder ( const QString & order ) const [virtual]

Returns the order named order.

Note:: If the requested order does not exist, an empty Order object is inserted.

See also:: getOrders, getEvent

Reimplemented in InheritableObject.

int GameObject::getParam ( const QString & param ) const [virtual]

Returns the value of the param parameter.

Note:: If the requested parameter does not exists, a null value is returned, and the parameters map stay unchanged

See also:: params, hasParam, setParam, getFlag

Reimplemented in InheritableObject.

int GameObject::getParamMax ( const QString & param ) const [virtual]

Returns the upper bound of the param parameter.

Note:: If the requested parameter does not exists, a default value is returned (100), and the parameters stay unchanged.

See also:: setParamMax, getParamMin

Reimplemented in InheritableObject.

int GameObject::getParamMin ( const QString & param ) const [virtual]

Returns the lower bound of the param parameter.

Note:: If the requested parameter does not exists, a default value is returned (0), and the parameters stay unchanged.

See also:: setParamMin, getParamMax

Reimplemented in InheritableObject.

bool GameObject::hasEvent ( const QString & event ) const [virtual]

Return true if the GameObject has a event named event.

See also:: getEvent, getEvents, hasOrder

Reimplemented in InheritableObject.

bool GameObject::hasFlag ( const QString & flag ) const [virtual]

Returns true if the falg flag is register in the object's flags.

See also:: getFlag, setFlag, hasParam

Reimplemented in InheritableObject.

bool GameObject::hasOrder ( const QString & order ) const [virtual]

Return true if the GameObject has a order named order.

See also:: getOrder, getOrders, hasEvent

Reimplemented in InheritableObject.

bool GameObject::hasParam ( const QString & param ) const [virtual]

Returns true if the parameter param is register in the object's parameters.

See also:: getParam, setParam, hasFlag

Reimplemented in InheritableObject.

GameObject int GameObject::ident ( ) const [inline]

Returns the name wide unique identifier of the object.

See also:: init, GameObject

void GameObject::init	(	Game *	g,
		GameObject *	parent
	)		`[protected]`

Initialises the object in case it had been construct with a NULL pointer (array of objects)

See also:: isValid, GameObject

virtual bool GameObject::isEditable ( ) const [inline, virtual]

Returns true if the GameObject is editable by the user.

Reimplemented in GameObjectInventory, GameObjectList< Type >, and DefaultTypes.

virtual bool GameObject::isValid ( ) const [inline, protected, virtual]

Returns true if the object has been initialised

See also:: init, GameObject

Reimplemented in Image.

const QDateTime& GameObject::lastChildrenEdition ( ) const [inline]

Returns the last time one of the object's children has been modified.

See also:: lastEdition, lastInternalEdition

const QDateTime& GameObject::lastEdition ( ) const [inline]

Returns the last time a modification was made on the object or one of its children.

See also:: lastInternalEdition, lastChildrenEdition

const QDateTime& GameObject::lastInternalEdition ( ) const [inline]

Returns the last edition time.

See also:: lastEdition, lastChildrenEdition

const QString& GameObject::name ( ) const [inline]

Returns the name of the object.

See also:: setName

QList< QString > GameObject::orders ( ) const [virtual]

Returns the list of order's names of the object.

See also:: getOrder, getEvents

Reimplemented in InheritableObject.

QList< QString > GameObject::params ( ) const [virtual]

Returns the list of the registered paramters

See also:: getParam, setParam, flags

Reimplemented in InheritableObject.

GameObject* GameObject::parent ( ) const [inline]

Returns the parent of the object.

See also:: setParent

void GameObject::removeChild ( GameObject * c ) [protected, virtual]

Removes a child from the children list.

Note:: This method does not destroy the child.

See also:: addChild, child, children

void GameObject::removeEmittedAction ( Action * action )

Free the GameObject from the action action as its emitter.

This is usefull to avoid dangling references.

See also:: addEmittedAction, removeReceivedAction

void GameObject::removeEvent ( const QString & event ) [virtual]

Delete the event named event, if exists.

See also:: addEvent, removeOrder

void GameObject::removeFlag ( const QString & flag ) [virtual]

Erases the flag flag.

Note:: If the requested flag does not exists, the falgs stay unchanged.

See also:: renameFlag, addFlag

void GameObject::removeOrder ( const QString & order ) [virtual]

Delete the order named order, if exists.

See also:: addOrder, removeEvent

void GameObject::removeParam ( const QString & param ) [virtual]

Erases the param parameter.

Note:: If the requested parameter does not exists, the parameters stay unchanged.

See also:: renameParam, addParam

void GameObject::removeReceivedAction ( Action * action )

Free the GameObject from the action action as one of its receivers.

This is usefull to avoid dangling references.

See also:: addReceivedAction, removeEmittedAction

void GameObject::removeReference ( )

Decreases the references counter

See also:: addReference

void GameObject::renameEvent	(	const QString &	order,
		const QString &	newOrder
	)		`[virtual]`

Changes the name of the event event to newEvent.

Note:: If the requested event does not exist, a new event is created.

See also:: addEvent, removeEvent

void GameObject::renameFlag	(	const QString &	flag,
		const QString &	newFlag
	)		`[virtual]`

Changes the name of the flag flag to newFlag.

Note:: If the requested flag does not exist, a new flag is created.

See also:: addFlag, removeFlag

void GameObject::renameOrder	(	const QString &	order,
		const QString &	newOrder
	)		`[virtual]`

Changes the name of the order order to newOrder.

Note:: If the requested order does not exist, a new order is created.

See also:: addOrder, removeOrder

void GameObject::renameParam	(	const QString &	param,
		const QString &	newParam
	)		`[virtual]`

Changes the name of the param parameter to newParam.

Note:: If the requested parameter does not exist, a new parameter is created.

See also:: addParam, removeParam

void GameObject::setFlag	(	const QString &	flag,
		bool	enable
	)		`[virtual]`

Set the value of the flag flag.

Note:: If the requested flag does not exists, it is created.

See also:: flags, hasFlag, getFlag, setParam

void GameObject::setName ( const QString & n ) [virtual]

Defines the name of the object.

See also:: name

void GameObject::setParam	(	const QString &	param,
		int	value
	)		`[virtual]`

Set the value of the param parameter.

Note:: If the requested parameter does not exists, it is created.

See also:: params, hasParam, getParam, setFlag

Reimplemented in InheritableObject.

void GameObject::setParamDomain	(	const QString &	param,
		int	min,
		int	max
	)		`[virtual]`

Sets the lower and upper bound of the param parameter.

Note:: If the requested parameter does not exists, the parameters stay unchanged.

See also:: getParamMin, getParamMax, setParamMin, setParamMax

void GameObject::setParamMax	(	const QString &	param,
		int	max
	)		`[virtual]`

Sets the upper bound of the param parameter.

Note:: If the requested parameter does not exists, the parameters stay unchanged.

See also:: getParamMax, setParamMin, setParamDomain

void GameObject::setParamMin	(	const QString &	param,
		int	min
	)		`[virtual]`

Sets the lower bound of the param parameter.

Note:: If the requested parameter does not exists, the parameters stay unchanged.

See also:: getParamMin, setParamMax, setParamDomain

void GameObject::setParent ( GameObject * p )

Defines the parent of the object.

See also:: parent

void GameObject::touch ( )

Notify the object and its parent that it has been modified.

See also:: lastInternalEdition, lastChildrenEdition, lastEdition.

The documentation for this class was generated from the following files:

src/editor/Game/gameobject.h
src/editor/Game/gameobject.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation
